LiteParse Server: Self-Hostable Document Parsing

The document parsing problem

Most AI and data workflows eventually hit the same wall when dealing with documents. Your data lives in PDFs, Word documents, spreadsheets, scanned images, and getting clean text out of them is harder than it looks.

Naive approaches (pypdf, basic extraction libraries) lose spatial layout, whereas cloud parsing APIs solve accuracy, but introduce latency, per-page costs, privacy concerns, and network dependency. At the same time, running a full LLM just to extract text is expensive and slow for anything that aims to scale.

In contrast, LiteParse provides fast, local, accurate document parsing with open-source tooling. It extracts text with precise spatial layout information, producing bounding boxes for every text item, reporting the position where they appear on the page. Even if not immediately apparent, spatial fidelity matters: it is what makes downstream tasks like table extraction, section detection, and citation grounding actually work.

liteparse-server wraps LiteParse in an HTTP API, making it usable from any language or service as a dedicated, self-hosted parsing backend.

What it can parse

LiteParse handles the full range of document formats found in real workflows:

- PDFs — native text extraction with spatial layout and bounding boxes; selective OCR for scanned pages and embedded images
- Office documents — Word (.docx, .doc, .odt, .rtf), PowerPoint (.pptx, .ppt), spreadsheets (.xlsx, .xls, .csv) via LibreOffice
- Images — .jpg, .png, .tiff, .webp, .svg and more via ImageMagick

OCR uses bundled Tesseract.js by default, with plug-in support for EasyOCR, PaddleOCR, or any custom OCR server, which can be a useful addition when you need GPU-accelerated accuracy on large document collections.

Mixed-format batch jobs work out of the box: point the server at a directory of PDFs, Word files, and images and it handles conversion and parsing in one pass.

Two endpoints

POST /parse — parse a single document

Upload any supported file, get back structured page data with text and bounding boxes, or plain text if that is all you need.

# Structured JSON with layout
curl -X POST http://localhost:5000/parse -F "file=@contract.pdf"

# Plain text
curl -X POST "http://localhost:5000/parse?text=true" -F "file=@contract.pdf"

The JSON response includes a pages array. Each page carries the extracted text items with their positions, ready to feed into a chunking pipeline, a RAG retriever, or a layout analysis model.

POST /screenshots — page images for vision models and citations

Renders document pages as PNG images and sends them back as newline-delimited JSON. Each response line contains the page number, dimensions, and Base64-encoded image data.

This endpoint is designed for vision-capable LLM workflows and apps that require visual citations: screenshot a document, send the images to a model alongside a question, and get answers grounded in the actual visual layout of the page.

curl -X POST "http://localhost:5000/screenshots?pages=1,2,3" \
  -F "file=@annual-report.pdf"

Both endpoints accept a config field for fine-grained control through the options supported by the LiteParse configuration.

Two deployment modes

LibreOffice and ImageMagick are already included in the liteparse-server Docker image. However, if you want to run the server directly with Node or Bun (without Docker), you’ll need to install LibreOffice and ImageMagick on your own system first.

Minimal server setup

The slim server has zero infrastructure dependencies and you can run it locally with Bun/Node or as a Docker container:

# with bun
bun run start-slim:bun
# with node
npm run start-slim:node

docker build -f slim.Dockerfile -t liteparse-server-slim .
docker run -p 5000:5000 liteparse-server-slim

Full stack

When you are running liteparse-server as shared infrastructure, the full Docker Compose setup adds an example with everything a production service needs:

- Redis caching — parse results are cached by SHA-256 hash of the file content(s) and config. Identical documents are never parsed twice (within the expiration range of the cache entry). TTLs: 1 hour for single files, 12 hours for batch, 24 hours for screenshots.
- Redis rate limiting — 100 requests per 60 seconds per IP, enforced at the server level before any parsing work is done
- Distributed tracing via OpenTelemetry and Jaeger — every request produces a trace with span attributes for file name, size, MIME type, parse mode, page count…, which are collected and displayed by Jaeger.

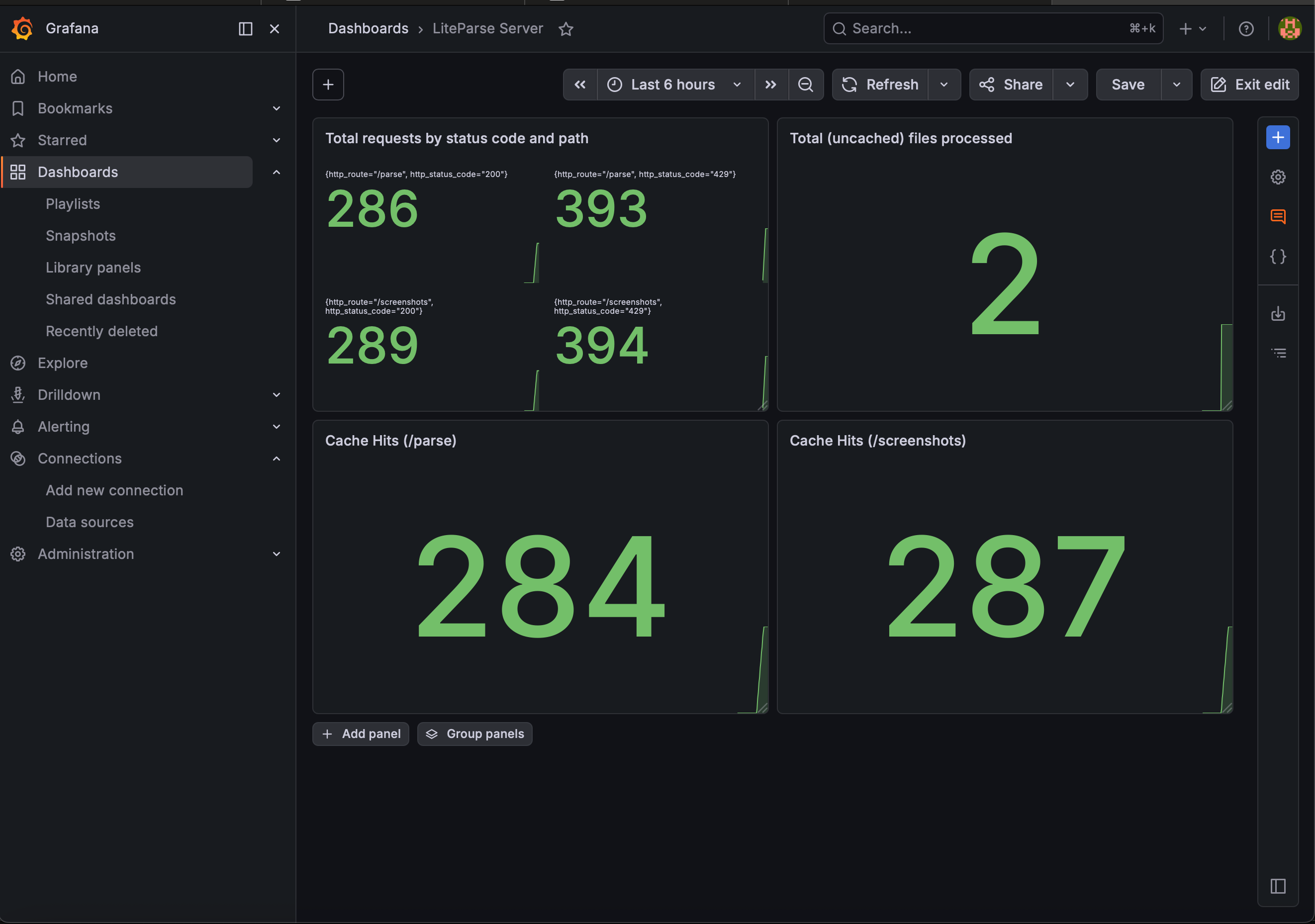

- Metrics via Prometheus and Grafana — request throughput, parse durations, page counts, file sizes, cache hit rates, and error counts, all pre-wired and directly pulled by Prometheus while the server is running.

Get started

The source is on GitHub at github.com/run-llama/liteparse-server and you can get started with the server from there. You can find a full guide in the documentation as well.

You can also pull the pre-built Docker image, which is self-contained and ready to run immediately:

docker pull ghcr.io/run-llama/liteparse-server:main
docker run -p 5000:5000 ghcr.io/run-llama/liteparse-server:main

Once the server is booted, it will be running on `http://localhost:5000`, and you can test it with the following commands:

# Parse
curl -X POST "http://localhost:5000/parse" \
-F "file=@test.pdf"

# Screenshot
curl -X POST "http://localhost:5000/screenshots" \
-F "file=@test.pdf"

The full LiteParse documentation (including OCR configuration, multi-format support, bounding box output, and the TypeScript and Python library APIs) is also available at developers.llamaindex.ai/liteparse.
